Silent Type High Function 22KW 28KVA Diesel Generator with Perkins

Product Detail

Silent Type High Function 22KW 28KVA Diesel Generator with Perkins




Silent type diesel generator,it  can with a canpay if you need. This Diesel generator has high thermal efficiency, low fuel consumption. The advantages of a small diesel generator ultra-quiet, it will not affect the normal work. Also, the utilization range of small power generator is wide.







Specification:

Silent type diesel generator

Place of origin: Guangdong,china(Mainland)

Brand Name: Wagna

Model Number:DL24P-50

Engine: 404D-22TG

Prime power: 22KW/28KVA

Frequency: 50HZ/60HZ

Speed:1500rmp/1800rmp

Alternator:Stamford/WAGNA/Leroy Somer

Controller: Deep Sea/Smart Gen.

Certification:CE/CSA/UL/ISO



Product parameter:

Silent type diesel generator

Unit Model set	DL24P-50
Power	Prime	Standby
Unit Power rate (KW)	22	24
Engine Power rate(KVA)	28	30
Engine Model	404D-22TG
Engine manufacturer	Perkins engine
Engine structure	Inline 4 cylinders, four stroke, naturally aspirated
Engine cooling mode	40°C water tank radiator, cooling fan with fan belt drive, safety shield
Governing system	Electronic speed regulation control system
Start mode	24V DC electric start,and equipped with silicon rectifier charging generator
Fuel System	High pressure fuel pump
Total engine displacement(L)	2.2
Bore*Stroke(mm)	84*100
Fuel Consumption of 100% load(g/kw·h)	246
Oil Capacity (L)	11
Coolant Capacity(L)	9.3
Rated voltage / frequency /power factor	400V/230V, 50Hz, 0.8 hysteresis, three-phase four wire
Steady-state frequency change rate	Better than 5%
Insulation Class / Protection Grade	Class H/IP 21/22/23
Telephone influence factor /harmonic  coefficients	TIF<50/THF<2%
Maximum noise level (dB)A	=96
Standard accessories	A start battery and a connecting wire,exhaust pipe, corrugated pipe, flange, damping muffler of a base, a shock absorber
Dimension (mm)	1420*500*1000
Weight (kg)	470

Ps. Data of above table changes sometime, for reference only.

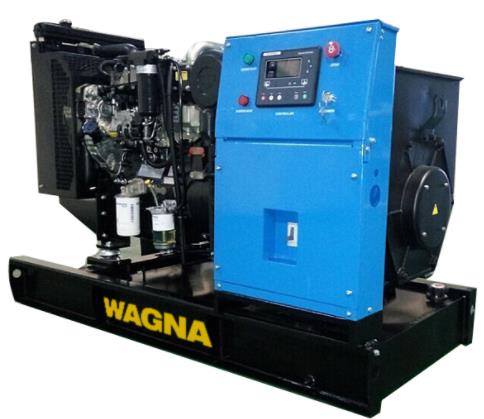

Product picture:







***Picture for guidance purpose



Engine:

400 Series 404D-22TG








Fuel Consumptio
Engine Speed	1500 rev/min
	g/kWh	l/hr
Standby	261	8.3
prime power	246	7.1
75% of prime power	232	5.0
50% of prime power	238	3.5



General Data:

Compression ratio 23.3:1

Direction of rotation  Anti-clockwise viewed on flywheel

Cooling system Water cooled

Total coolant capacity 7.0 liters (1.85 gals)

Total lubrication system 10.6 liters (2.8 gals) capacity

Length  973 mm (38.3 in)

Width   590 mm (23.2in)

Height   973 mm (38.3 in)

Total weight (dry) 242 kg (533 lb)



Control system:
Brand:Smart Gen / Deep Sea,etc.

Features:English interface;LED screen;Touch buttons




Applications :

With advanced reasonable structure, high efficiency, low vibration and noise, smooth running, high reliability, easy handling, WAGNA generators are widely used in national defense, telecommunications, construction site, commercial buildings, industrial and mining sites, oil fields, roads, ports, villas, banks, hospitals etc.



Service:

BEFORE SERVICE: According to the clients' requirement and actual situation, we will furnish the technology consultation and kinds of information.
AFTER SERVICE: Guarantee for one year or 1000 running hours (accord to whichever reach first) from arrival date of destination port. During the guarantee period, we will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare-parts maintenance for gensets.
