Residential 400kva Diesel Generator backup

Product Detail

370kw 400kva Doosan diesel generator




Specifications:

Residential 400kva Diesel Generator backup

Brand Name: Wagna

Model Number: DL400DO-50

Engine: DP158LC

Prime Power: 370KW 400KVA

Voltage: 400V/230V adjustable

Speed: 1500/1800 RMP

MOQ: 1 pcs

Alternator:Stamford/WAGNA/Leroysomerr

Controller: Deep Sea/SmartGen.




Product parameter:

Residential 400kva Diesel Generator backup

Unit Model set	DL400DO-50
Power	Prime	Standby
Unit Power rate (KW)	370	400
Engine Power rate(KVA)	462	500
Engine Model	DP158LC
Engine manufacturer	Doosan engine
Engine structure	V type 8 cylinders, four stroke, naturally aspirated
Engine cooling modeling	40°C water tank radiator, cooling fan with fan belt drive, safety shield
Governing system	Electronic speed regulation control system
Start mode	24V DC electric start,and equipped with silicon rectifier charging generator
Fuel System	High pressure fuel pump, electronic regulation
Total engine displacement(L)	14.6
Bore*Stroke(mm)	128*142
Compression ratio	15:1
Fuel Consumption of 100% load  (g/kw·h)	213
Oil Capacity (L)	13~22
Coolant Capacity(L)	79
Rated voltage / frequency /power factor	400V/230V, 50Hz, 0.8 hysteresis, three-phase four wire
Steady-state frequency change rate	Better than 5%
Insulation Class / Protection Grade	Class H/IP22/23
Telephone influence factor / harmonic  coefficients	TIF<50/THF<2%
Maximum noise level (dB)A	=108
Standard accessories	A start battery and a connecting wire,exhaust pipe, corrugated pipe, flange,      damping muffler of a base, a shock absorber
Dimension (mm)	2850*1400*1800
Weight (kg)	3000

Ps. Data of above table changes sometime, for reference only.

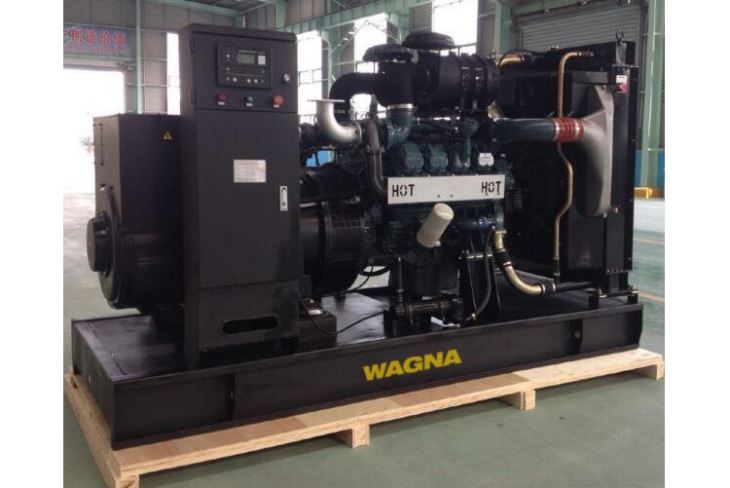

Product show:

Residential 400kva Diesel Generator backup









***Picture for guidance purpose

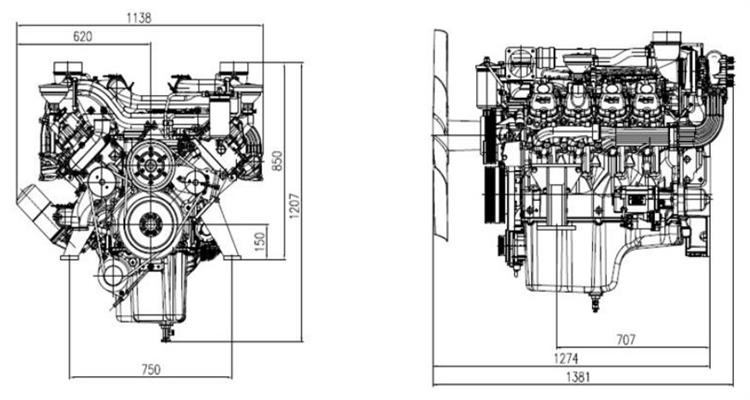

Engine:





FUEL CONSUMPTION
Prime Power (lit/hr)	1,500 rpm	1,800 rpm
25%	27.6	32.3
50%	48.9	57.7
75%	72.9	83.4
100%	99.6	111.5
Standby Power (lit/hr)	1,500 rpm	1,800 rpm
25%	29.6	34.9
50%	53.4	62.7
75%	80.5	91.4
100%	110.9	123.8




Alternator Feature:

Brand ( select-able): Wagna/ Stamford JCI544C / Leroy-Somer etc.;

?   Brushless, 4 poles, rotation magnet.

?   IP21-23 enclosure is standard for all industrial alternators.

?   The insulation system is Class H.

?   Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.

?   Wide range of flange adaptors and single bearing disc coupling.

?   Standard 2/3 pitch windings avoid excessive neutral currents.

?   Optional accessories available for easy paralleling with mains or other generators.

?   Optional permanent magnet generator ( PMG ) system provide constant excitation under all condition.

?   AVR auto voltage regulator, auto exciter, auto adjustment.



Optional  Parts:

? Silent trailer/portable trailer

? Soundproof/rainproof enclosure

? ATS

? Remote system

?50? coolant tank

?Base frame fuel tank / normal fuel tank

?Oil / water separator

?Fire extinguishing type silencer of heavy industry



Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.






Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
