Top Quality Waterproof Three Cylinder 36KW 45KVA Perkins Diesel Generator

Product Detail

Top Quality Waterproof Three Cylinder 36KW 45KVA Perkins Diesel Generator

Specification:

36KW 45KVA Perkins Diesel Generator


Place of Origin: Guangdong, China (Mainland)

Brand Name: Wagna

Model Number: DL40P-50

Engine: 1103A-33TG1

Speed: 1500/1800rmp

Frequency: 50/60HZ

Rated Power: 45KVA/36KW

Rated Voltage: 400/230V adjustable

Alternator:Stamford/WAGNA/Leroy Somer

Controller: Deep Sea/Smart Gen.

Warranty: One Year/1000 Hours



Product parameter:

36KW 45KVA Perkins Diesel Generator

Unit Model set	DL40P-50
power	Prime	Standby
Unit Power rate (KW)	36	40
Engine Power rate(KVA)	45	50
Engine Model	1103A-33TG1
Engine manufacturer	Perkins engine
Engine structure	Inline 3 cylinders, four stroke, turbo charging
Engine cooling mode	40°C water tank radiator, cooling fan with fan belt drive, safety shield
Governing system	Electronic speed regulation control system
Start mode	24V DC electric start,and equipped with silicon rectifier charging generator
Fuel System	High pressure fuel pump
Total engine displacement(L)	3.3
Bore*Stroke(mm)	105*127
Fuel Consumption of 100% load(g/kw·h)	215
Oil Capacity (L)	8
Coolant Capacity(L)	10
Rated voltage / frequency /power factor	400V/230V, 50Hz, 0.8 hysteresis, three-phase four wire
Steady-state frequency change rate	Better than 5%
Insulation Class / Protection Grade	Class H/IP 21/22/23
Telephone influence factor /harmonic  coefficients	TIF<50/THF<2%
Maximum noise level (dB)A	=93
Standard accessories	A start battery and a connecting wire,exhaust pipe, corrugated pipe, flange, damping muffler of a base, a shock absorber
Dimension (mm)	1520*650*1200
Weight (kg)	770

Ps. Data of above table changes sometime, for reference only.

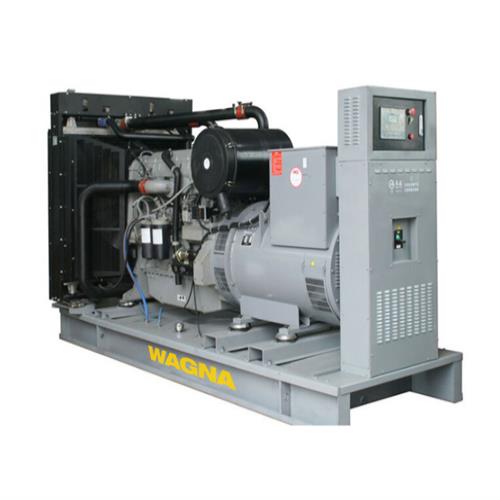

Product show:

36KW 45KVA Perkins Diesel Generator









***Picture for guidance purpose



Engine:

1100 Series 1103A-33TG1

Compression ratio .......................................................... 17.25:1

Rotation...............................Anti-clockwise viewed from flywheel

Cooling system.......................................................Water-cooled





Fuel Consumption
Engine Speed	1500 rpm		1800 rpm
	UK g/hr	l/hr	UK g/hr	l/hr
Standby	2.6	12	3.1	14.3
Prime Power	2.3	10.7	2.8	12.9
75% of Prime Power	1.8	8.2	2.1	9.9
50% of Prime Power	1.2	5.7	1.5	7.1





Alternator:

Stamford UCI224D

Brush-less, 4 poles, rotation magnet.
IP23(NEMA1) enclosure is standard for all industrial alternators.
The insulation system is Class H
Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
Wide range of flange adapters and single bearing disc coupling.
Standard 2/3 pitch windings avoid excessive neutral currents
AVR auto voltage regulator, auto exciter, auto adjustment



Digital Control Panel:
Controller Brand: DEEPSEA
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, current, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.




Optional equipment:

1. Engine protection unit (automatic protection when high water temperature, over engine speed, low oil pressure etc.)

2. Parallel equipment

3. Enlarged daily fuel tank(8hours as standard)

4. Electric engine speed governor device

5. Automatic control panel

6. Automatic transfer switch(ATS)

7. Jacket water/lube oil preheater
